Product Highlights
• Windows-based software with AVL and Dispatch features
• Low-cost initial package, optional license upgrades

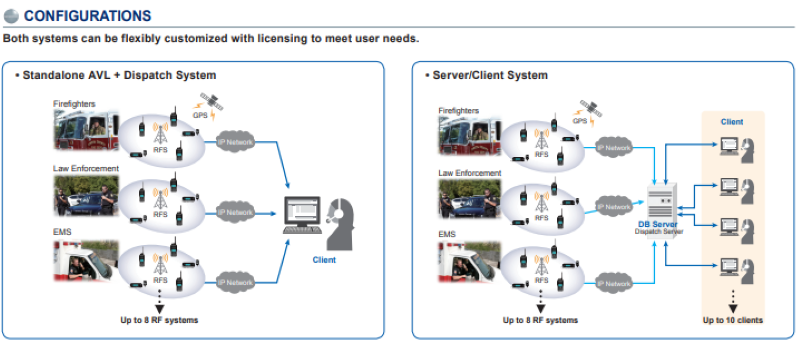

• Two configurations for enhanced scalability:
- A simple, PC-based standalone AVL & Dispatch system
- Multi-client operation with remote server; accepts up to
8 RF systems and 10 clients
• UI design with emphasis on functionality and maneuverability
• Supports diverse digital radio systems
• User-selectable options: Location Management, Voice Dispatch,
Voice Path, Multi-client capability for a server, Voice Record,
and RF System functions.
Dispatch and Voice Recording Features
• Console to: Unit, Talkgroup/Channel, Console calls
• Soft vocoder: Capable of simultaneous processing of up to 8 paths
• 3 configurable software patch group
• Configurable Call Box window
- Put any individual, talkgroup, console with priority
- Adjustable volume/mute per call box
- UID/alias indicator
- Configurable color and size
• Voice recording and playback
- Stores all voice in AMBE+2, quick replay from log window
- Exports voice data to MP3 data format
Basic Features
• Flexible and scalable operator positions
• Multi-role dispatching functions
- IP Voice dispatch console
- AVL, fleet monitoring and mapping
- Call log and Event sharing
- Voice recording/playback
• Supports multiple KENWOOD IP interfaces: DMR Conv, NXDN Conv, Type-C Trunking, and Gen2
• Highly optimized GUI
- User configurable call windows and patch windows
- Map with editable unit icons, groups, and imported layers
- Shortcut keys and configurable key bindings
• Server managed user levels, configurations, and permissions;
Up to 30 users can be registered with 10 simultaneous logins
• Server stores all communications log and data such as GPS, status, messages, audio, etc.
• Import/export asset lists (e.g. unit, group, fleet) via TSV format
• Manual/auto asset list creation
Fleet Management Features
• Location management for up to 1,000 subscriber units
• Compatible with both OpenStreetMap and scanned maps
• KML and CSV export
• Image layers can be individually switched on or off via Additional
Layer Window
• Auto & manual polling, Loneworker, GPS time mark, GeoFencing,
Track units, Go to home position, etc.
• Position Log & Play

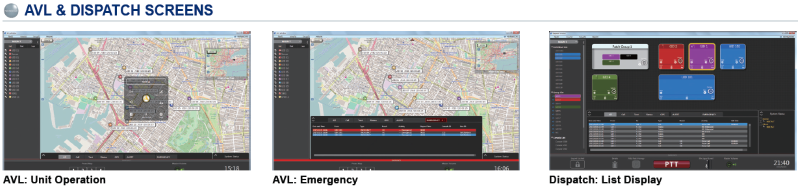

Main Dispatch screen
