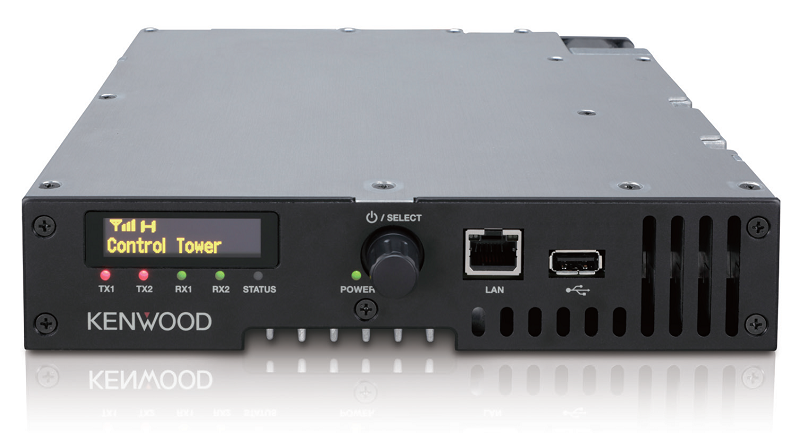

NXR-1700 (編號:NXR-1700)

GENERAL FEATURES
• 50 – 1 W RF Output Power (Up to
50 W@50%, 25 W@100% Duty Cycle)
• Light, Compact and Space-Efficient to Fit
2 Repeaters in a 1U Height, 19-inch Rack
• Large 1.71-inch OLED with Icons and Numeric Displays
• Thermal-Controlled Cooling Fan
• External Power Supply
• Up to 32 Channels
• Dual Digital Protocol: DMR Tier II / NXDN Conventional (programmable one at a time)
• USB-A Connector Ready for Audio Accessories
• External In/Out Pin from DB25
• Non-repeat Simplex / Semi-Duplex Mode
for Analog and NXDN Digital
• Hot Standby System Redundancy
• Built-in IP Network Adapter
• Multicast Routing
• SNMP Protocol for Direct Reporting to
a Generic System*3
• Supports G.711 Audio Codec (for Test Console and Third-party Applications)
• IP Remote Management (Monitor / Control / Programming / Test Console)
• Ready for IPIF to External Applications
(for IP Console, OTAP) / Voice Logging
• Built-in SIP IF without External IP Console or Gateway (Digital Only)*1, *2, *3
• IP Remote Control Interface (IPRCI)*3
• Enhanced Security (HTTPS)
• CW ID
• Hang Timer

Multi-Site Conventional IP Network up to
16 Sites (for both Digital and Analog)*2
• Voting Repeater + Up to 15 Receivers (Analog / NXDN / DMR)*2, *3
• IP Networking Compatible with NXR-710/810 & TKR-D710/D810 Series Repeaters (Able to Swap/Add-on as a part of existing digital conventional systems in the field)
DIGITAL – COMMON
• Built-in AMBE+2™ Vocoder
• Mixed Analog / Digital Operation
• Site Roaming Using Beacon
• RF-Link: NXDN / DMR*3
• Repeat Encrypted Voice/Data
(AES / DES / DMR Enhanced Encryption)
• User List / Site Group Table
• Radio Access Control*1, *3

DIGITAL – NXDN
• FDMA – Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
• NXDN Conventional Operation*2, *3
DIGITAL – DMR
• TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
• DMR Tier II Conventional Operation*2
• Call Interruption
FM ANALOG
• FM Conventional Operation
• Multiple QT/DQT
